Expansion

Merkmale
- Get Connected
Enter a new generation of high-speed connectivity with the CU30N's two USB 3.0 ports. Plug in and experience transfer speeds up to ten times that of USB 2.0. - Full Speed Ahead
Supporting four modes of transfer including Low-speed (1.5Mbps), full-speed (12Mbps), high-speed (480 Mbps), and super-speed (5Gpbs), the CU30N is compatible with a wide range of USB devices. - Full Compliance
Utilizing the NEC μPD720200 Processor, the CU30N is fully compliant with both USB 3.0 and xHCI (Extensible Host Controller Interface) specifications, ensuring complete interoperability with USB 3.0-compliant devices. - Easy to Install
Simply plug the CU30N into any PCI Express x1, x4, x8 and x16 slot to get your system up and running with USB 3.0 - no external power source required! - Multiple OS Compatibility
The CU30N is fully compatible with systems running Windows 7/Vista/XP operating systems in both 32bit and 64bit versions.
Übersicht
With transfer speeds of up to 5 Gbps,USB 3.0 marks a new standard in high-speed connectivity. Today, storage innovator Thecus® Technology is pleased to announce a new product in its ever-expanding lineup of products for the digital lifestyle – the CU30N. Sporting two USB 3.0 ports and full backward compatibility with USB 2.0 and 1.1 standards, the CU30N is the easy way to bring your computer system into the age of USB 3.0.

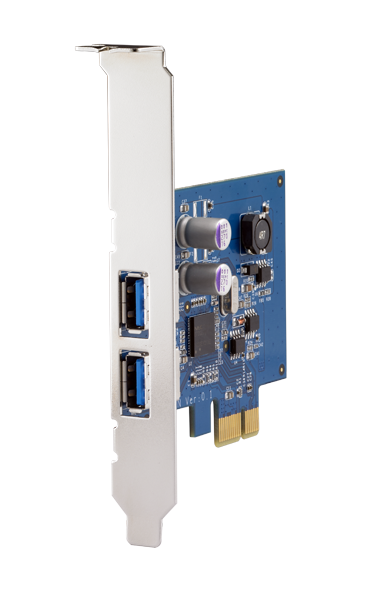

The CU30N is a full height PCIe add on card that is compatible with PCI Express x1, x4, x8 and x16 slots. Installation is extremely easy and no external power source is required to get it up and running. Once installed, the CU30N gives your system two USB 3.0 ports that are ready to connect with all sorts of USB 3.0 devices.
On the hardware front, the CU30N utilizes the NEC μPD720200 Processor - the world's first USB host controller compliant with USB 3.0 and xHCI specifications. With the NEC μPD720200, the CU30N supports four modes of transfer, including Low-speed (1.5Mbps), full-speed (12Mbps), high-speed (480 Mbps), and super-speed (5Gpbs).
The CU30N can also be used to upgrade certain Thecus® NAS units for USB 3.0 connectivity. Currently, the CU30N can be installed in the following models:
-N4200
-N7700 Series
-N8800 Series
The CU30N is fully compatible with PCs using Windows 7/Vista/XP 32/64bit operating systems.
“USB 3.0 is certainly the upcoming future connectivity standard, and with the CU30N, users can leverage this new standard today,” said Florence Shih, Thecus® Technology General Manager. “Combining the CU30N with our D0204 is a great way to experience the future of storage.”
Techn. Daten
1. Hardware Platform
Item |
Spec |
Connectors |
|
Interface |
|
Power Supply |
No external power source required |
Dimension |
Full-height |
2. Software Functions
Item |
Spec |
PCIe Gen2 bandwidth |
Supported |
Data rate |
Low-speed (1.5 Mbps) / Full-speed (12 Mbps) / High-speed (480 Mbps) / Super-speed (5 Gbps) |
Compatible with Thecus NAS PCI-e Slot |
N4200 / N7700 Series / N8800 Series |
Operating Systems Supported |
Windows 7/Vista/XP 32/64bit |
Inhalt des Lieferkartons
![]() |
![]() |
![]() |
Universal CD | QIG | Warranty Card |
